SIT Top Mount Pilot Assembly For Natural Gas Fireplaces(Sit Top Mount Jotul Direct Vent Fireplace Pilot Assembly For Natural Gas 129471)

Features

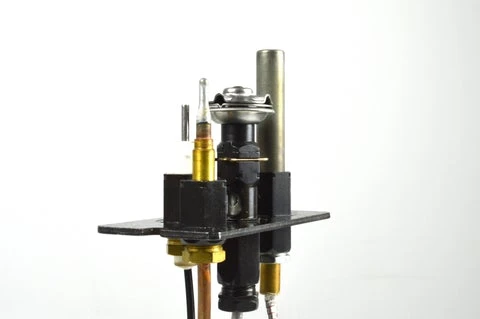

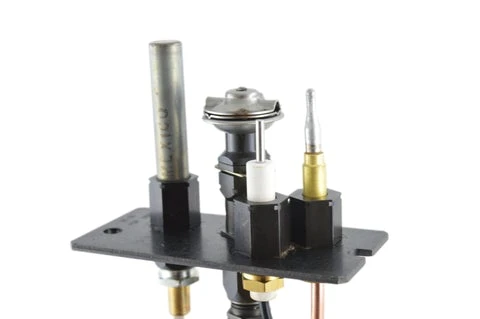

Flat three-way pilot assembly for Standing Pilot Millivolt Valve Systems

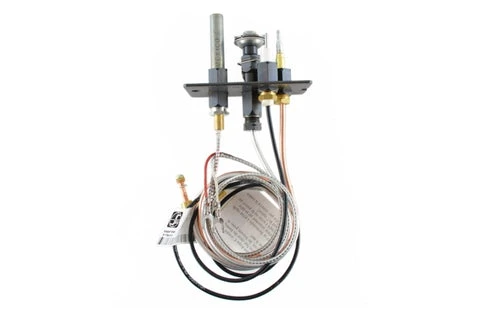

This includes the thermopile (main valve sensor), fine thread thermocouple (pilot sensor), ignitor wire and ceramic probe, and the pilot tube. It also includes the bracket that goes next to the burner holding it all together.

Pilot tube, thermocouple, thermopile, and igniter wire are about 24″ long.

This package contains a complete new pilot assembly.

Also known by the following part numbers:

• American Hearth (Empire): R7612
• Avalon (Travis Industries): 250-00412 / 93006515
• Continental: W010-0801 / W010-1194 / W010-0798
• Empire Comfort Systems: R7612
• Fireplace Xtrordinair (Travis Industries): 250-00412 / 93006515
• Hampton: 910-038
• Hearthstone: 7211-370
• Heatilator: 571-510A
• Heat-N-Glo: 571-510A
• Jotul: 129471
• Kingsman Fireplaces: 1001-P714si / 1001-P714si / 1001-P714si / 1001-P606SI
• Lennox: H5947
• Lexington Forge: 37D0018 / 10000674 / 37D0018 / 37D0018
• Lopi (Travis Industries): 250-00412 / 93006515
• Majestic / Insta-Flame / Majco: 37D0018 / 10000674 / 37D0018 / 37D0018 / 10000674
• Marquis (Kingsman): 1001-P714si / 1001-P714si / 1001-P606SI
• Monessen: 37D0018 / 37D0018 / 10000674 / 37D0018
• Napoleon: W010-0801 / W010-1194 / W010-0798
• Quadrafire: 571-510A
• Regency (FPI): 910-038
• SIT Group: 0.199.769
• Temco: 20010203
• Vermont Castings: 37D0018 / 10000674 / 37D0018 / 10000674 / 37D0018 / 37D0018 / 10000674
• White Mountain Hearth (Empire): R7612
